Built to Spec
The core technical details for the nanuskate 3ft modular mini-ramp — so you know exactly what you're getting.

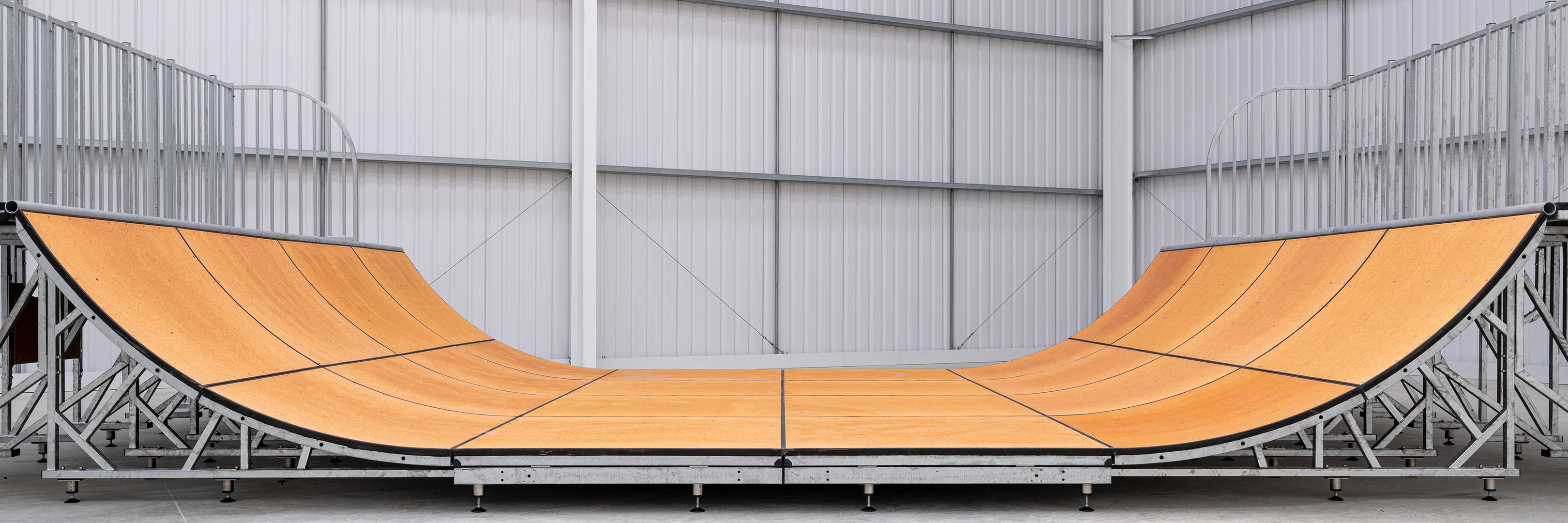

EXAMPLE DIMENSIONS (3ft VERSION)
Ramp length | 8.0m |
Ramp width | 4.9m |
Ramp height | 3ft (0.9m) |
Dolly dimensions | 2.05m long × 1.35m wide |
Dollies per ramp | 2 (included as standard) |
RIDING SURFACE
The nanuskate riding surface is built to perform — not just protect.

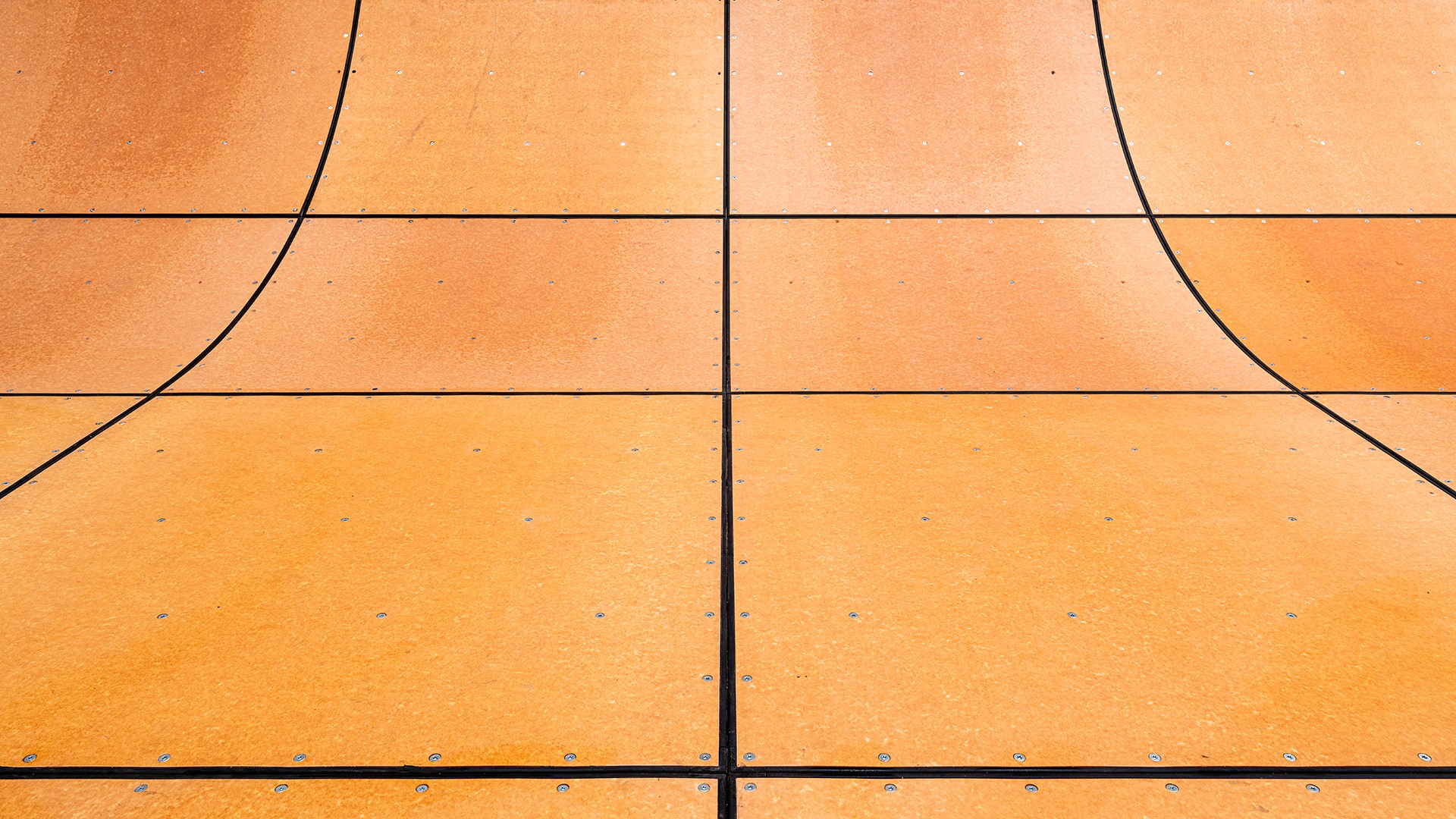

A 6mm Skatelite top layer is bonded to a 15mm treated plywood backing, forming a solid 21mm riding surface throughout. Skatelite is the industry-standard surface used in professional skateparks and competition venues worldwide. The treated ply backing provides structural rigidity, moisture resistance and long-term durability across repeated use.
No flex. No compromise. The surface you'd expect at a permanent park — on a ramp that moves.
CONSTRUCTION
Frame | Galvanised steel |
Riding surface | 21mm (6mm Skatelite + 15mm treated ply subsurface) |
Approximate weight | 2050kg (full ramp) |
Transport | 2 × bespoke transport dollies, included |
ASSEMBLY
Assembly time | Build in as little as 30 minutes |
Tools required | None |
Crew required | 2 people recommended |
Indoor / outdoor | Suitable for both |
TRANSPORT OPTIONS
Every nanuskate ramp comes with two purpose-built transport dollies included as standard — designed to protect, organise and mobilise every component, and sized to move through standard doorways and loading bays without specialist equipment.

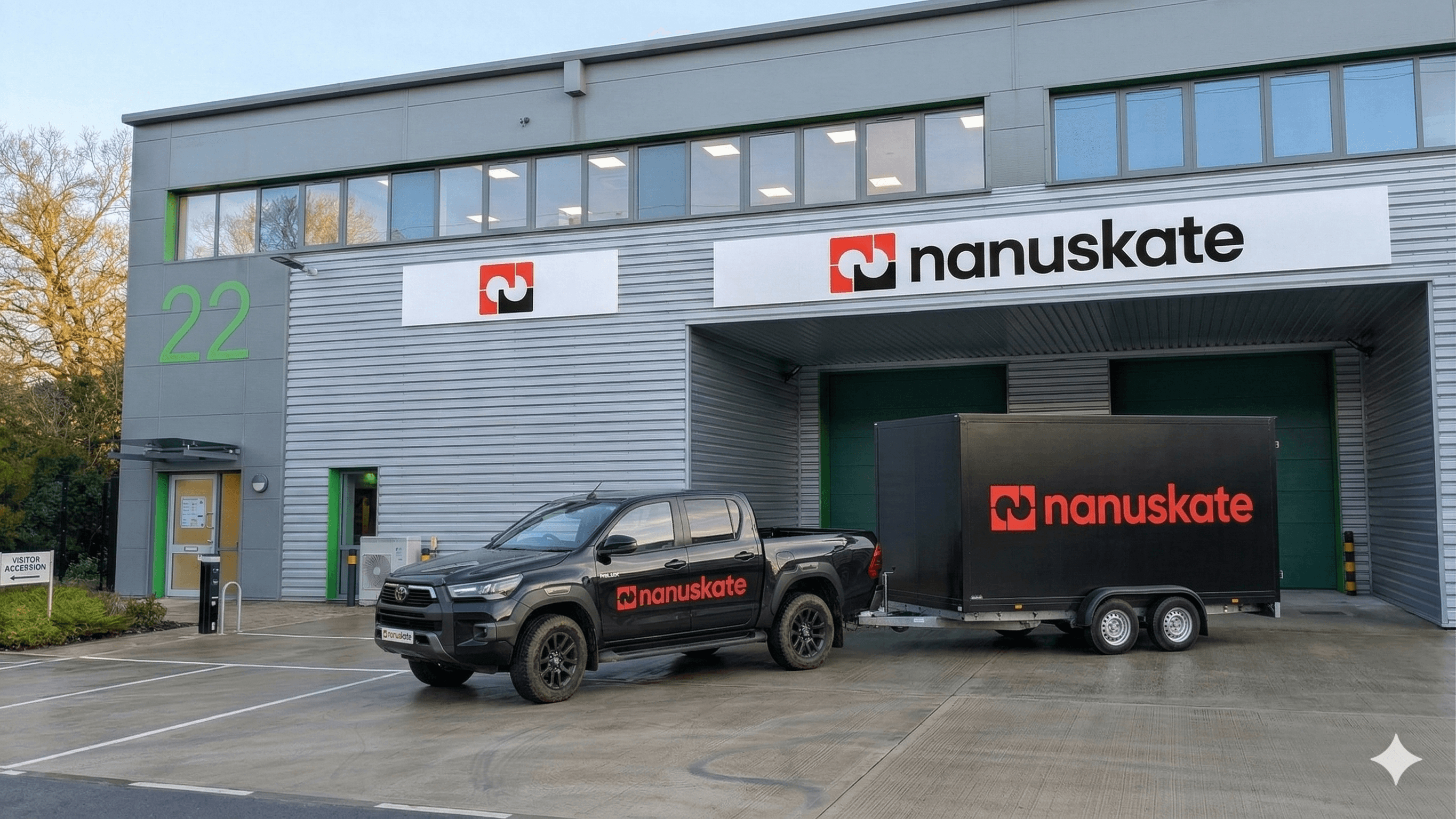

For operators who want a more permanent mobile solution, a fully enclosed branded trailer is available as an alternative to the standard dollies. The trailer houses the entire ramp system in a weatherproof, secure enclosure, purpose-built for frequent transit and outdoor storage. It also doubles as a moving billboard: fully brandable with your logo, colours and identity, so your setup arrives with impact wherever it goes.
The trailer option is particularly well-suited to touring skate teams, event operators running multiple activations, brands using the ramp as part of a promotional programme, and any operator who wants their ramp permanently road-ready without the need to reload between deployments.
Choose your setup. Either way, the ramp performs the same.
MODULARITY
nanuskate modular mini-ramps are available now in 3ft, 4ft and 5ft configurations. Additional sections, extensions and modules are currently in development — all engineered to integrate seamlessly with your existing ramp. In addition, should you require bespoke configurations then just get in touch to talk through.
Buy once. Expand later.
WARRANTY & COMPLIANCE
Structural warranty | 5 years |
Safety standard | Built to ROSPA and BS EN 14974 standards |
Patent status | Patent-protected design |
PRICING
Pricing is available on request and will depend on configuration, options and volume. Contact us to discuss your requirements and receive a tailored quote.
